Replacing a 44 x 44 rhomboid façade tile

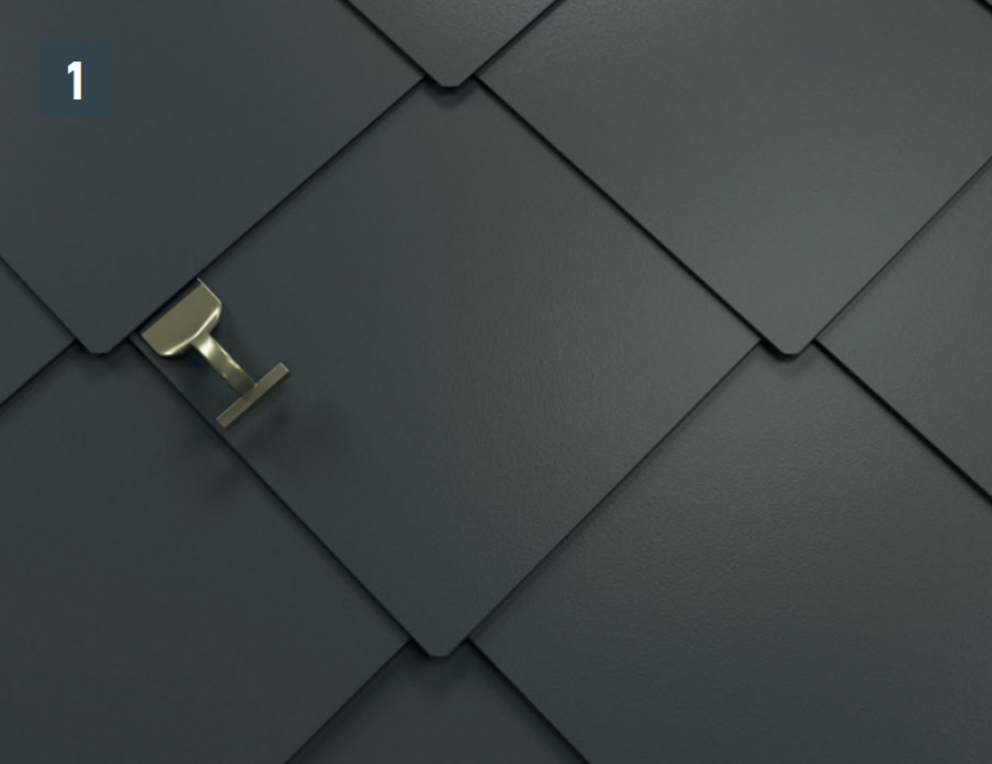

  • Open the fold with the shuttering iron (Image 1).

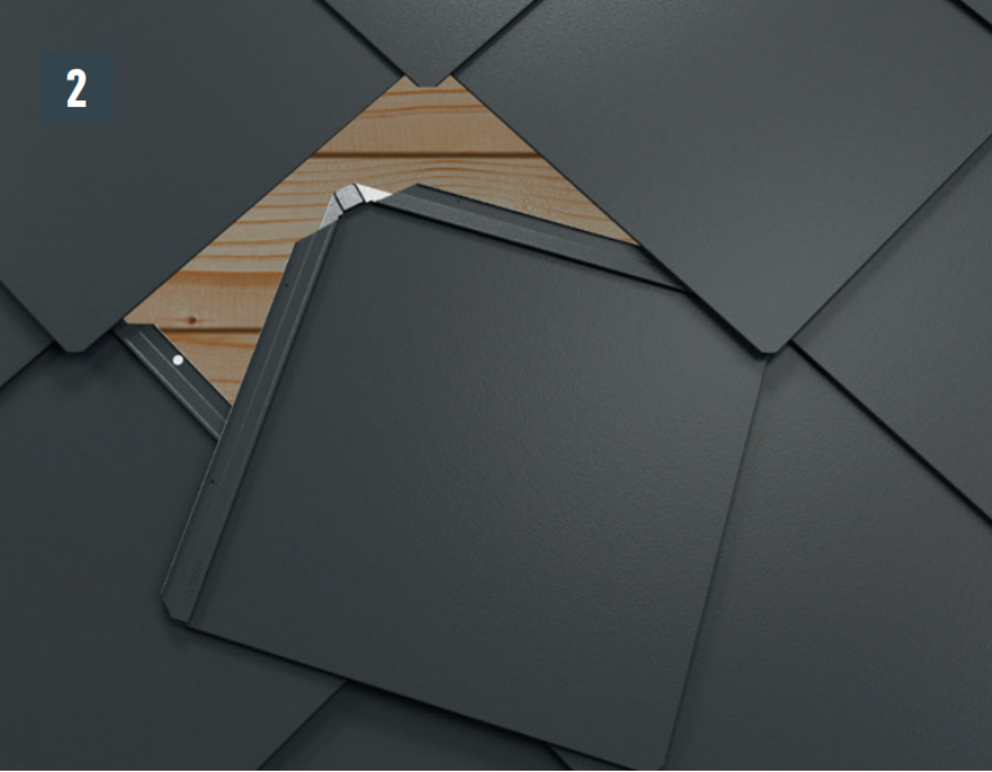

  • Loosen the nails and remove the 44 × 44 x 44 rhomboid façade tile to be replaced (Image 2).

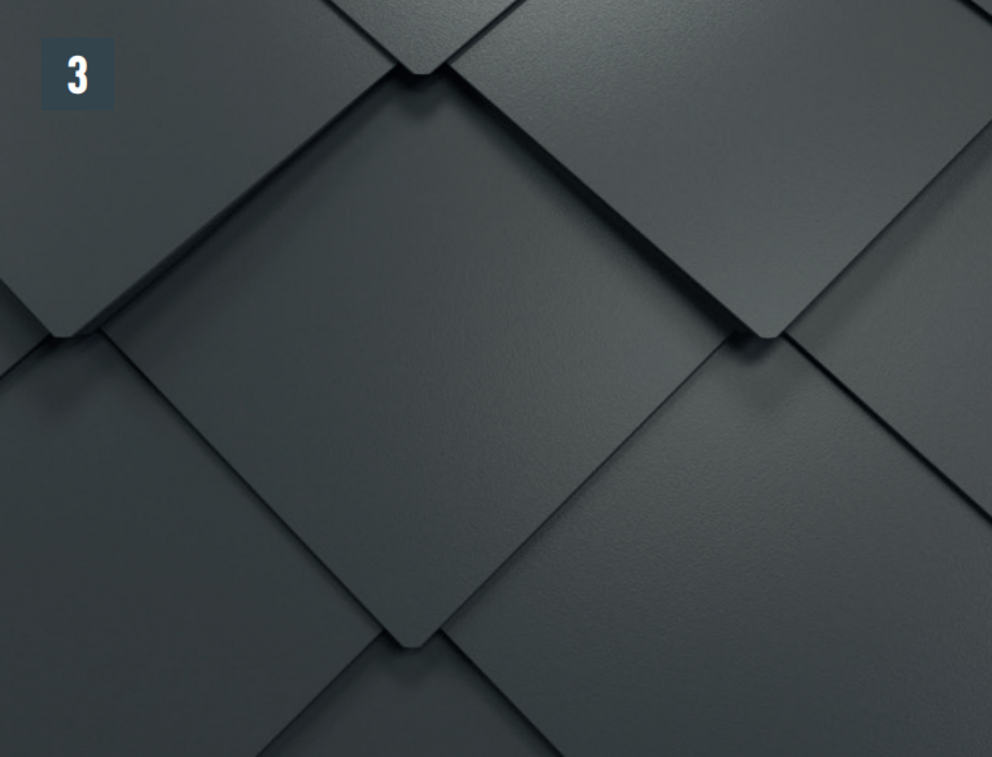

  • Slightly open the seam of the new 44 x 44 rhomboid façade tile, push up and fasten (Image 3).
    CAUTION: Choose the position of the new ring nails carefully, they must not hammeredd into the existing holes!

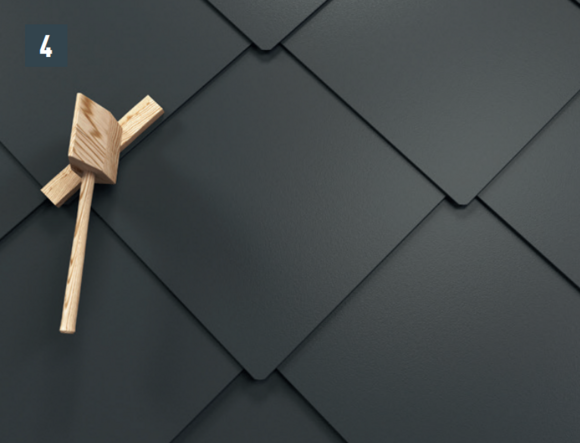

  • Carefully work in the rebates and restore them to their original shape (Image 4).
