Middle/end clamp, PREFALZ 500/600 solar panel safety lock

Solar PREFALZ solar panel Product information Middle/end clamp, PREFALZ 500/600 solar panel safety lock

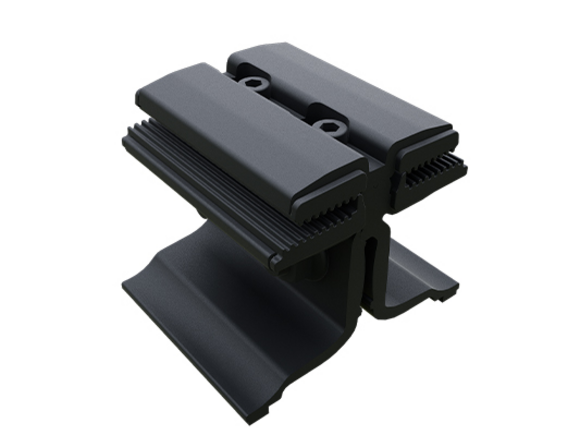

PREFALZ 500/650 solar middle clamp

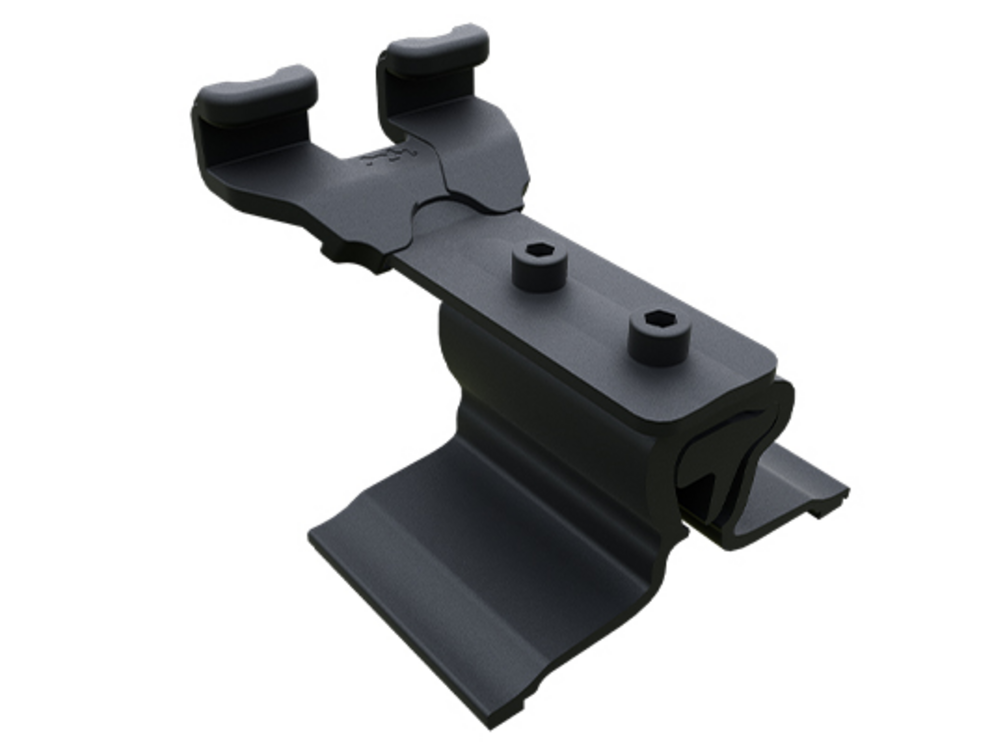

PREFALZ 500/650 solar panel safety lock

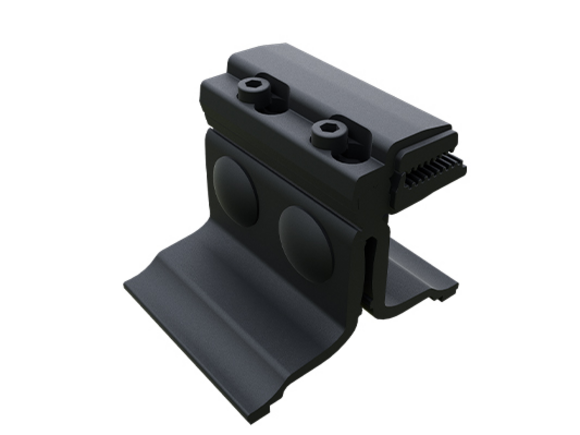

PREFALZ 500/650 solar end clamp

Fastening	Clamping on PREFALZ double-lock standing seam (seam height of 25 mm)
colour	Black anodised
Components	Aluminium clamp base 2 mushroom head bolts A2 M10 × 25 2 hexagon nuts A2 M10 2 fixing screws A2 M6 × 20 (hexagon socket 5 mm) Aluminium clamp top EPDM insert

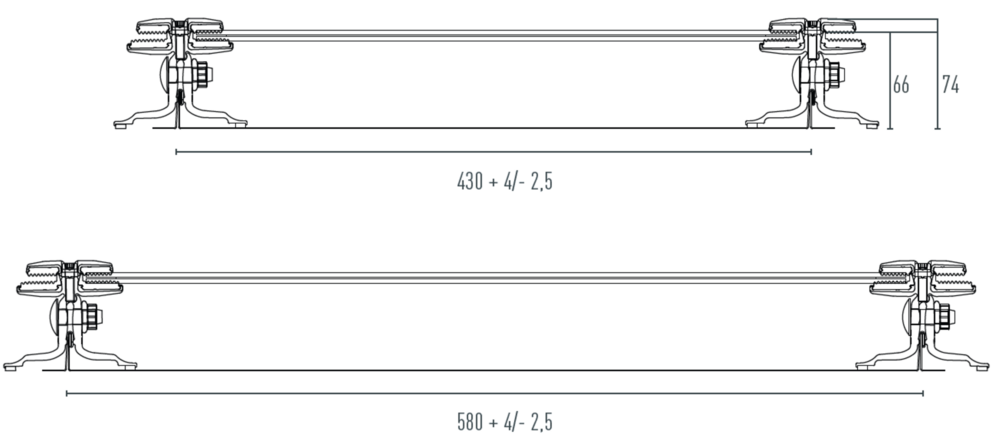

Fold spacing including tolerances

Note

Please note that panels with a double under seam should be trimmed by 10 mm due to less seam loss in order to achieve a panel width of 430/580! Installation on panels with a double over seam is not possible due to the higher seam loss of 10 mm.

Middle/end clamp, PREFALZ 500/650 solar panel safety lock
