A PREFA solar roof panel system requires one supply line and one discharge line for each string. In addition, the rows of roof tiles must be connected to each other with connecting cables.

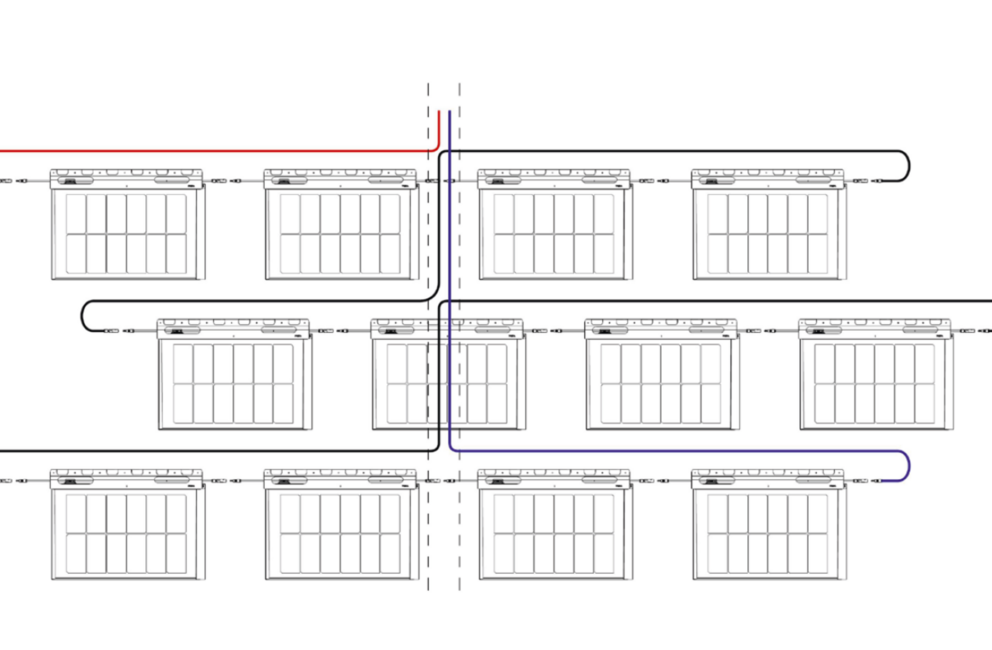

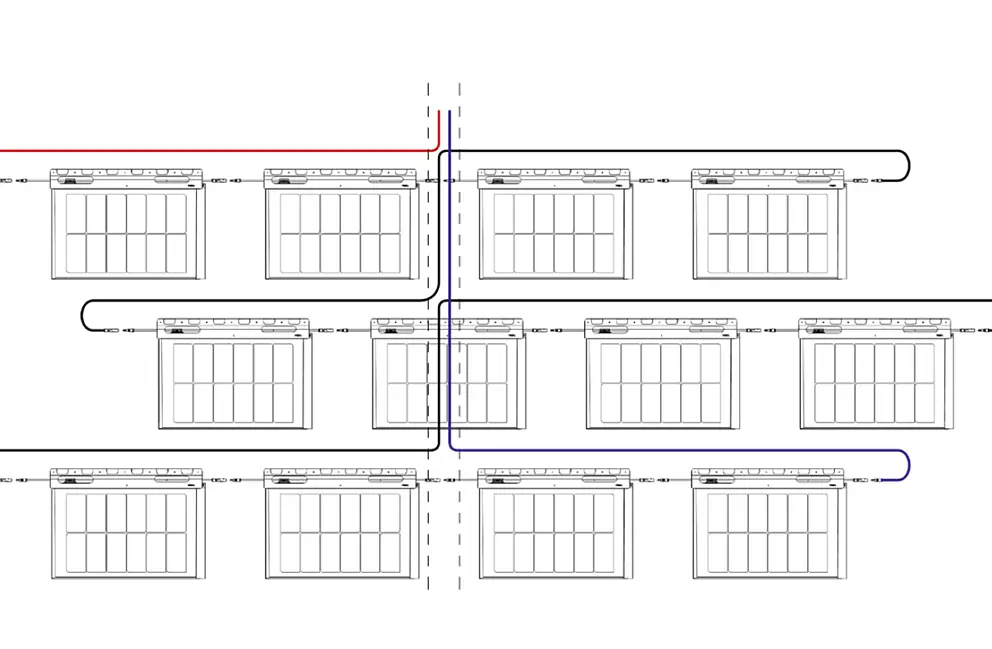

In the following diagram of the cabling, the supply line is shown in blue, the discharge line in red, and the connecting lines in black. All cables are supplied in black and can be assigned by means of numbering.
